DIW Digital Plate In-Line Washing Machine

  • Description: Digital Version Plate Making Machine Efficient and high quality finishing of flexo washing with built-in circulating water pump and PLC drive
  • INQUIRY   EMAIL

Function: Efficient and high quality finishing of flexo washing with built-in circulating water pump and PLC drive

Performance:

1.Double wash-out tank separates black mask washing tank from main solvent tank which is convenient to maintain and guarantee perfect washing effect.

2.brush rotate and oscillate by suspension crankshaft drive

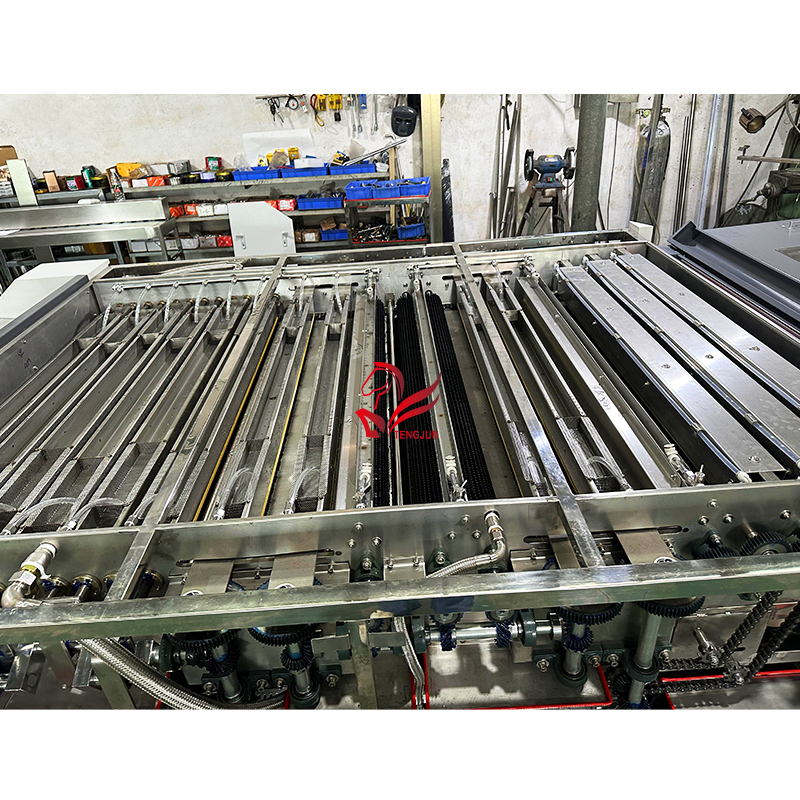

3.The brush of the machine consists of multiple sets round brushes and flat brushes

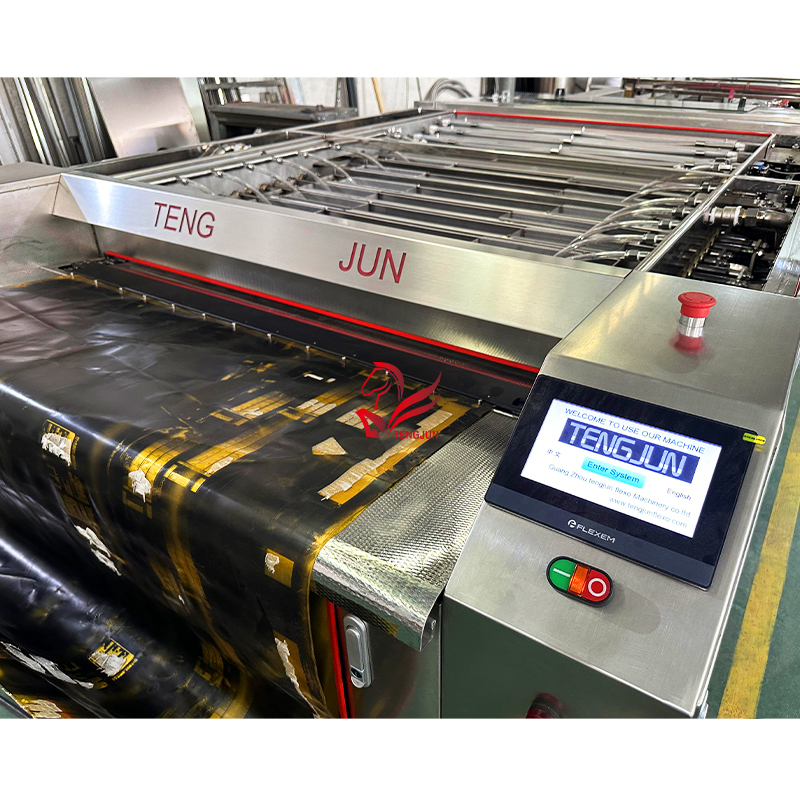

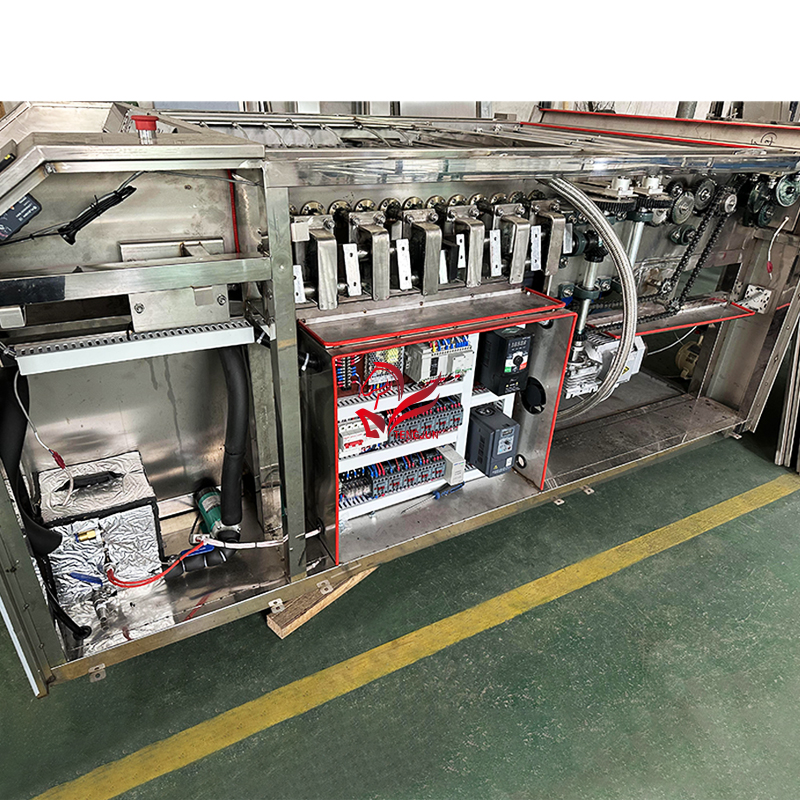

4.PLC and touch screen control, washing speed and brush rotation speed can be adjusted

5.Solvent temperature is controllable

6.Built-in solvent concentration detecting device

7.configuration with reverse rotation bottom brush to thoroughly clean plate suface

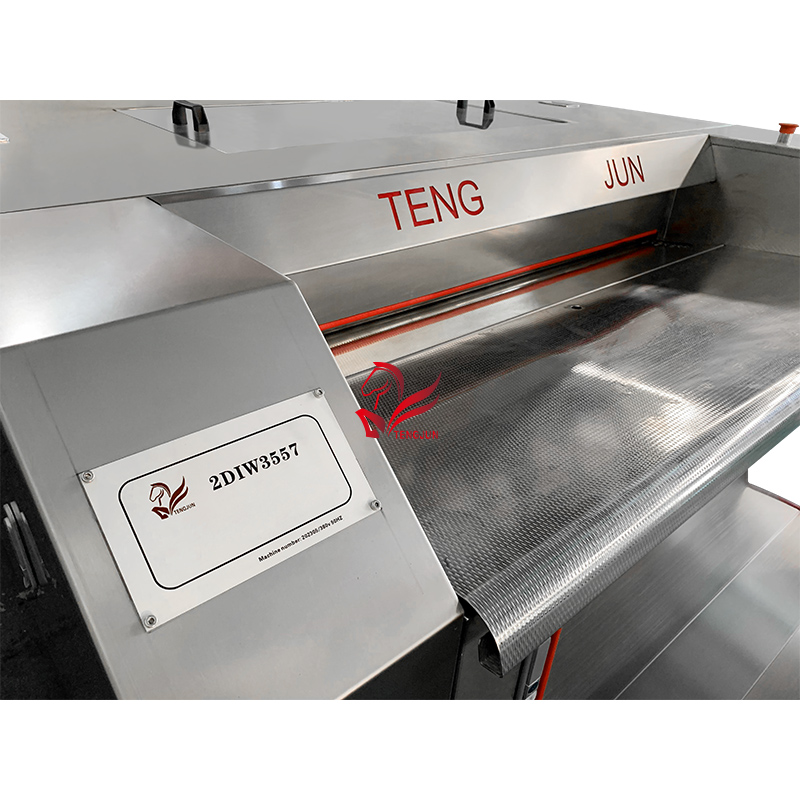

8.Front fuselage bracket to avoid the risk of the plate contacting the floor

9.Automatic solvent replenishment system,Save time and increase efficiency for mass production

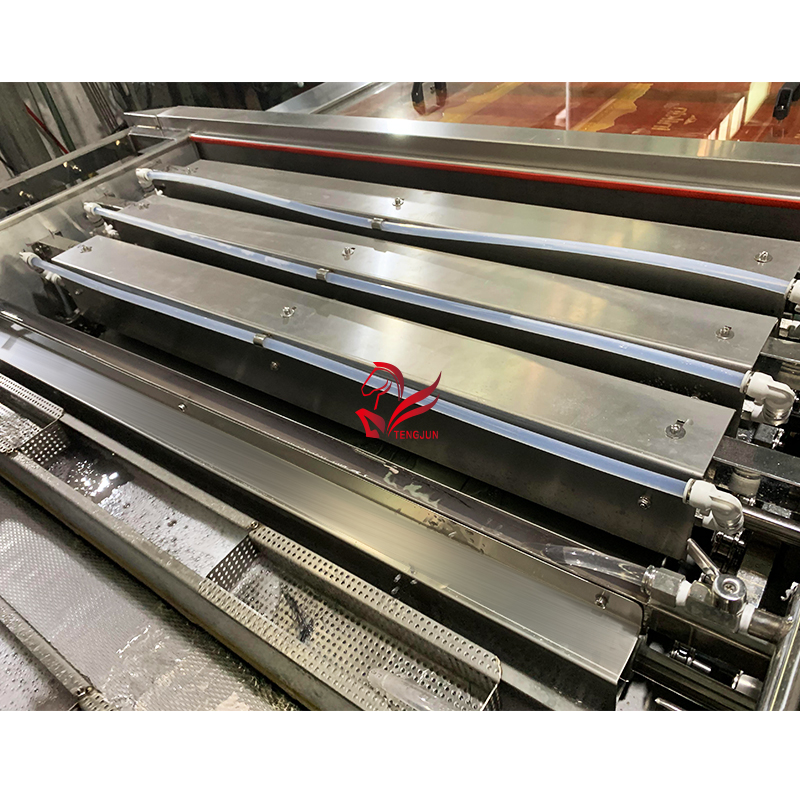

10.Install solvent distribution trays on the top of brush to make solvent flow evenly. In addition, there is a filter in solvent distribution trays to isolate the plate residue and debris and protect water pipes and pumps

Max supports plate sizes : 3000x1320mm(52x118inch)

Specification:
Model
CK-DIW Digital Plate In-Line Washing Machine
Plate size(MAX)
1060x660
1430x920
1520x1060
2030x1060
2030x1200
2030x1320

Power supply
2KW50-60HZ
2.2KW50-60HZ
2.5KW50-60HZ
3KW50-60HZ
3.2KW50-60HZ
3.5KW50-60HZ
L+N+E, 220VAC / 3L+N+PE,380VAC
Dimensions(LxWxH)mm
3900*1340*1100
4230*1600*1100
4320*1740*1100
4830*1740*1100
4830*1880*1100
4830*2000*1100
Weight, equipment
550KG
650KG
750KG
850KG
950KG
1050KG
