Liquid Photopolymer Flexo Resin Plate Making Machine

Liquid Photopolymer Flexo Resin Plate Making Machine

Description: 4260 Liquid Photopolymer plate making system, with PLC system & HMI digital control touch screen, simplified plate making process; it can also be operate under manual mode. Upper & lower glass, the m
INQUIRY EMAIL

4260 Liquid Photopolymer plate making system
As a service provider in flexography industrial, we understand your needs, we developed affordable range and types of liquid
photopolymer plate making system. 5280 Liquid Photopolymer plate making system, Design and plate making technology from Taiwan;
5280 is suitable for corrugated box plant with higher volume printing plate requirement, or trade-shop which newly start business.
Plate making area from 4260 able to fulfill 95% of the market carton box size.

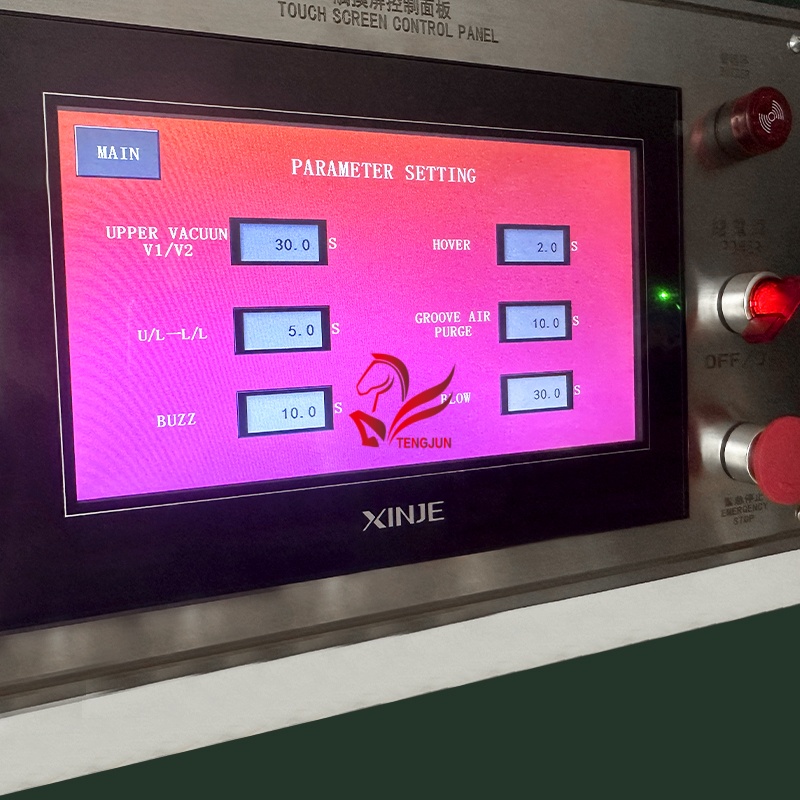

4260 Liquid Photopolymer plate making system, with PLC system & HMI digital control touch screen, simplified plate making process;
it can also be operate under manual mode. Upper & lower glass, the most important item in Liquid Photopolymer Plate-Making System;
it been processing grinding to a very tight tolerance, the contact surface gap should be below
±0.05mm. The movement of upper light compartment is speedy controlled by high precision screw track bar. Take in considering of
finished plate quality, UV light intensity at the upper & lower light compartment has been designed to keep UV light source

consistent and stable.

Model	Tengjun0918	Tengjun 4260	Tengjun 5280
Plate type	Liquid Photopolymer plate making machine
Plate size(MAX)	900X1800	1600x1100	1320x2032mm
Control	10”PLC touch screen	10”PLC touch screen	10”PLC touch screen
Glass thickness/ evenness	Transparent glass22mm / ±0.08mm	Transparent glass22mm / ±0.08mm	PPG=25mm / ±0.08mm
Plate thickness	2mm ~ 7mm	2mm ~ 7mm	2mm ~ 7mm
Power supply	6kw	6kw	6kw
	380-415V 3P+N+PE	380-415V 3P+N+PE
Equipped Lamp-Upper	UVA40W=18PCS	UVA 80W10R=14PCS	UVA 80W/T10=26 PCS
Equipped Lamp-Down	Philips 40W UVA-10pcs	UVA 80W10R=20PCS	UVA 80W10R=30PCS
Vacuum pump for upper and down glass	1.5KW	1.5kW	1.5kW
Substrate size	970mm	1160mm	1370mm
Suction film size	1000mm	1220mm	≥1400mm
Dimensions (LxWxH)	330138215cm	310172215cm	34016502150cm
Weight, equipment	1350KG	1300KG	1500KG
